M1 Tune System and Calibration files

Close M1 Tune before extracting these files

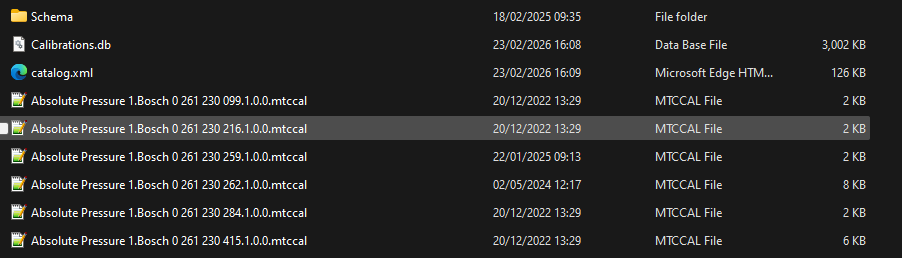

M1 Calibration Files

These files are stored in the following directory.

C:\Users\<username>\AppData\Local\MoTeC\

Extracting the Calibrations.zip file in this directory will install the files and folders needed for the Calibrations.

As the AppData directory is a hidden directory, you will need to make it visible to copy the files into it.

M1 System Files

These files are located in the following directory.

C:\ProgramData\MoTeC\M1\System

Extract the zip files into this directory.

As the ProgramData directory is a hidden directory, you will need to make it visible to copy the files into it.

M1 Directories

The directories that M1 Tune uses can be found in the View | Show Messages window, typically they will be as follows;

Folder Name	Location (C: drive presumed)	Tune Version
Abbreviations	\Users\<UserName>\AppData\Local\MoTeC\Abbreviations	1.5
Calibrations	\Users\<UserName>\AppData\Local\MoTeC\Calibrations	All
Packages	\Users\<UserName>\OneDrive*\Documents\MoTeC\M1\Packages	All
System	\ProgramData\MoTeC\M1\System	All
User Keys	\Users\<UserName>\AppData\Roaming\MoTeC\M1\Keys	All
System Keys	\ProgramData\MoTeC\M1\Keys	All
Licences	\ProgramData\MoTeC\M1\Tune\Licences	All
Workspaces	\Users\<UserName>\OneDrive*\Documents\MoTeC\M1\Tune\1.5\Workspaces	1.5
Templates	\Users\<UserName>\OneDrive*\Documents\MoTeC\M1\Tune\1.5\Templates	1.5
ECU Database	\Users\<UserName>\AppData\Roaming\MoTeC\M1\Tune	1.5
Auto Login Key	\Users\<UserName>\OneDrive*\Documents\MoTeC\M1\Tune\Auto Login Keys	1.5
Package Cache	\Users\<UserName>\AppData\Roaming\MoTeC\M1\Tune\1.5	1.5
Package Cache	\Users\<UserName>\AppData\Roaming\MoTeC\M1\Tune\1.4\Package Cache	1.4

* If OneDrive is enabled, if not used, remove the \OneDrive directory from the path.

The only way these locations would vary is if:

• Non default directories were chosen at the time of install
• Insufficient permissions for the folder to be made in the first place.
