How to transmit Dash accelerometer data to the M1

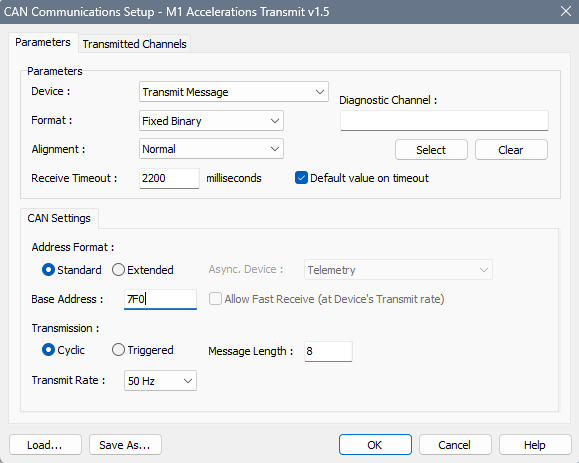

In the Dash Manager, create a template using the following settings.

The Base address can be changed to suit your requirements, 0x7F0 is the default Base address for the M1 CAN Receive massages.

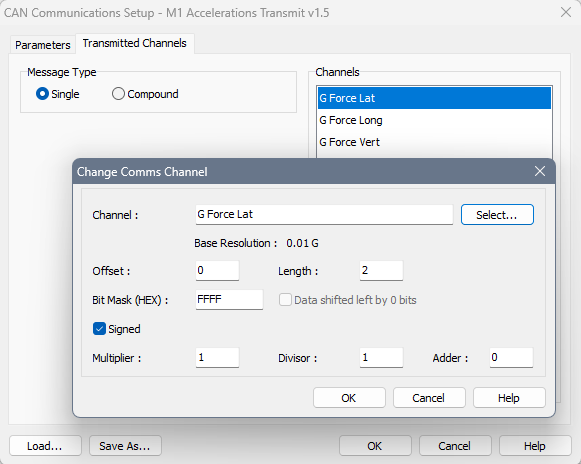

In the Transmitted Channels tab, configure the channels that you want to transmit.

Once the channels have been added, save the template and send it into the Dash.

There is a sample dash template attached to the bottom of this ticket.

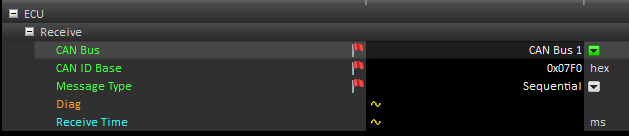

In M1 Tune, setup the ECU Receive parameters.

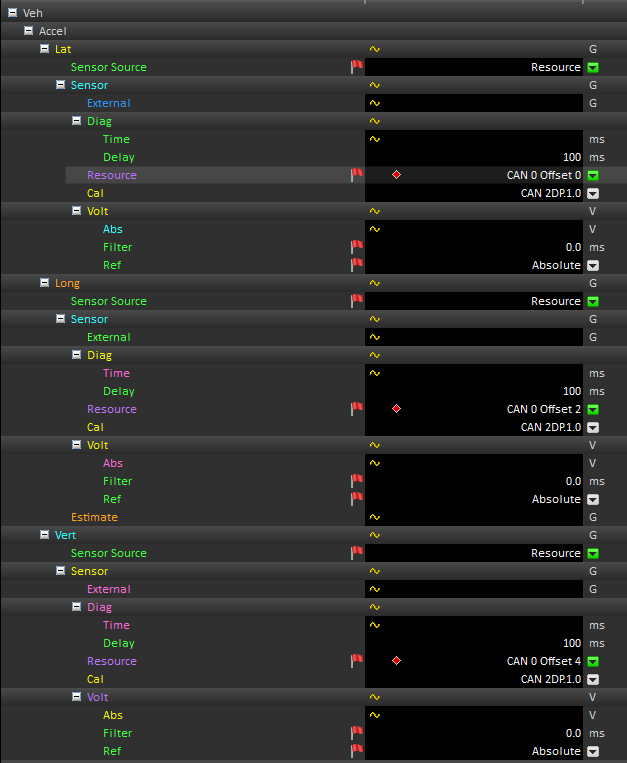

and the Vehicle Acceleration parameters as such.
