Determine the firing pairs by drawing a firing star and fill out the firing order in a clock wise pattern. The Firing pairs are the cylinders that are on the same axis, so for example the 8 Cylinder has Cyl 1 and Cyl 6 on the same axis.
This can also be used to determine the pairing for Wasted Spark Ignition configurations.

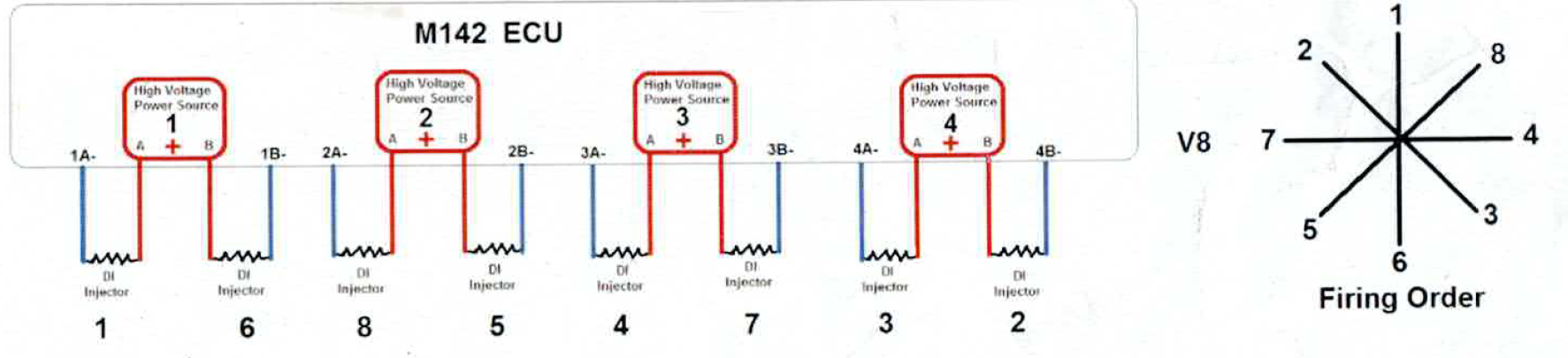

8 Cylinder

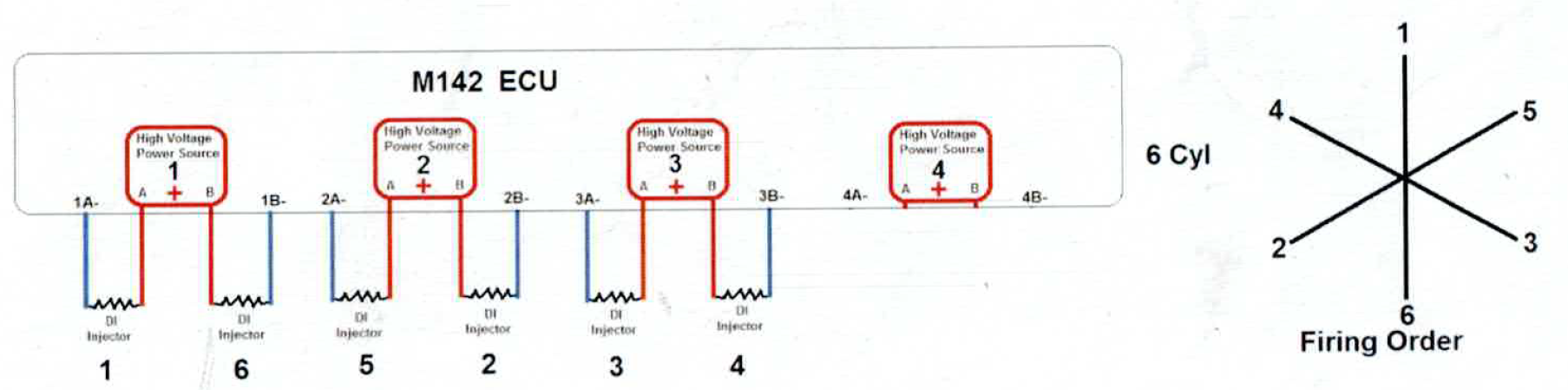

6 Cylinder

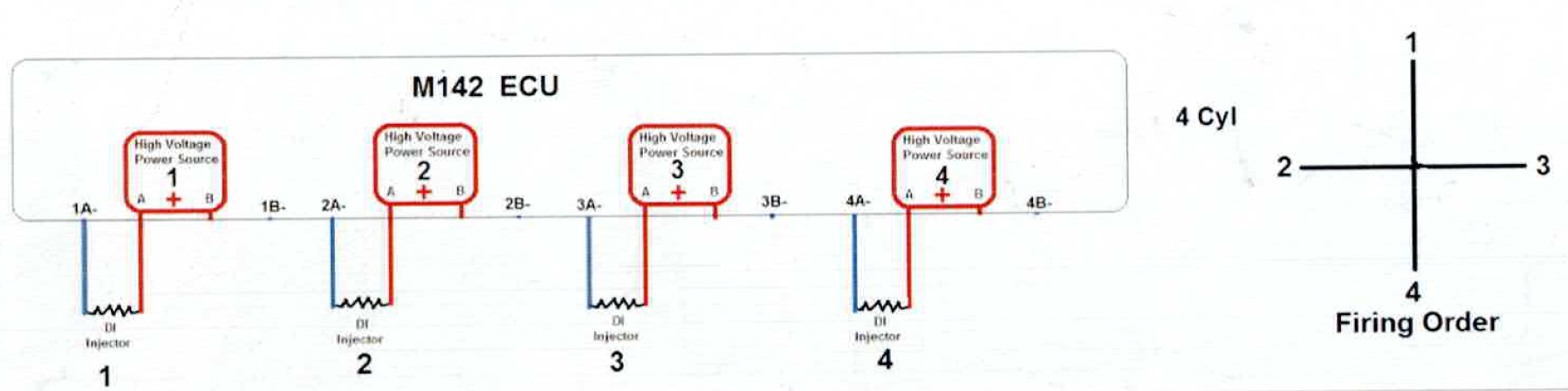

4 Cylinder
DI Pump
These use a Bridge Output for control, Bridge Output 1 used as an example only in this image.
