How do I do an Input Capture in M1 Tune?

In M1 Tune Click on Tools | Capture Inputs...

Click on the New button to create a new Capture.

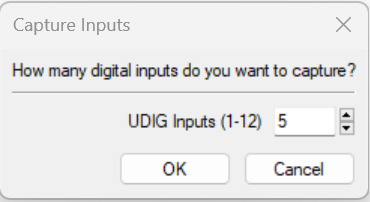

Select the number of inputs that you want to capture.

By default this is 5, depending on the number of sensors wired into the M1, this can be up to 7 on the small form factor M1 ECU's (M122, M130 and M170) or 12 on the large form factor M1's (M14x, M150, M18x and M190)

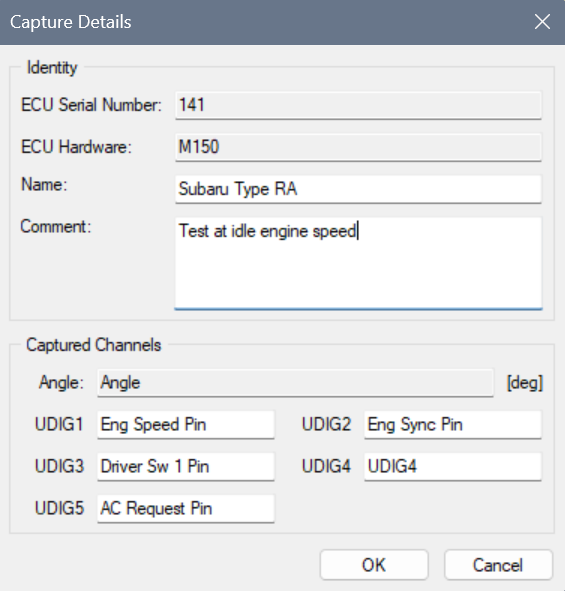

Once the Capture is completed, enter details for the capture, such as the vehicle details and engine speed that the capture was done at.  This makes referencing the file easier to do at a later date, or if it is being sent to a MoTeC Dealer or MoTeC for support, they can find the correct file.

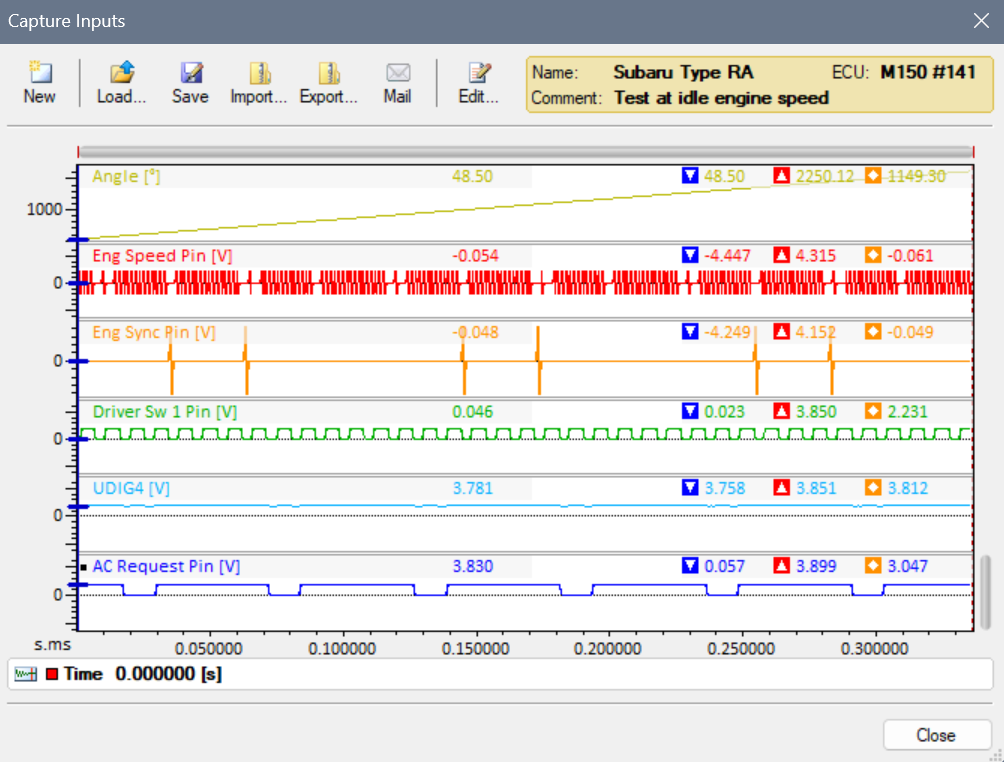

When you click OK, the Capture Inputs window will open, displaying the captured data.  This window can be resized by dragging the edges.  You can also zoom into the Time Graph to see more detail in the capture.

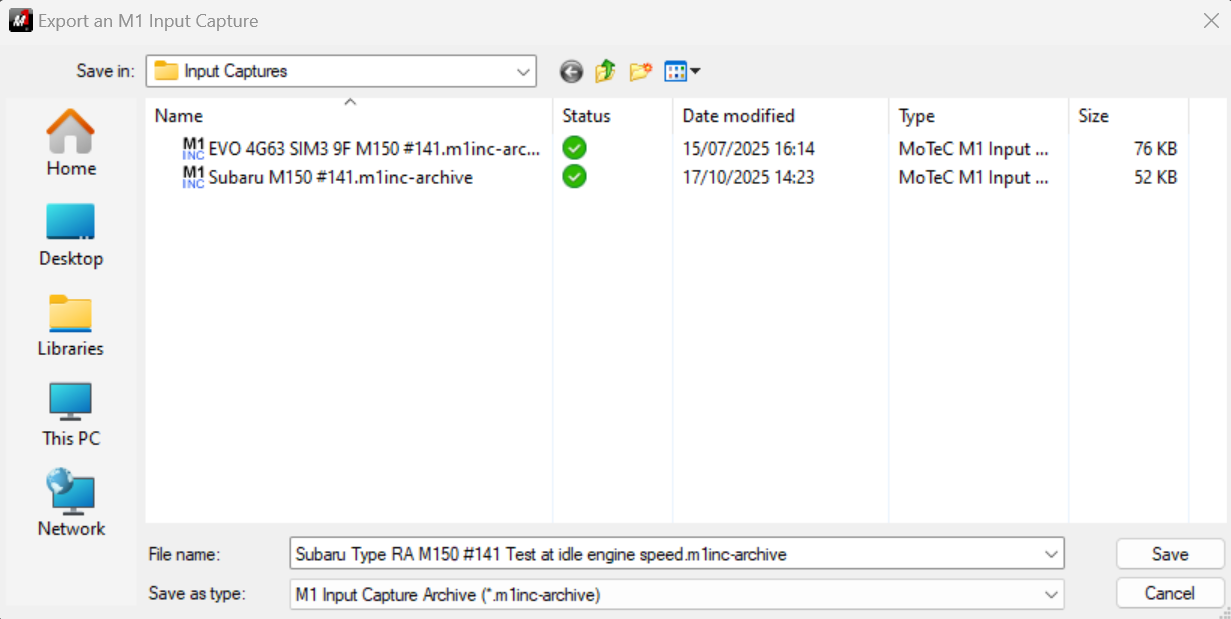

To Export the file to send it to another person, click on the Export... button.

Save the file in a local that you will remember, the default location is C:\Users\<username>\OneDrive\Documents\MoTeC\M1\Tune\Input Captures

Attach the file to the email or shared location to share it.
